Toyota Celica GT4 ST205 Kit tubi silicone Breather/Vacuum

SPECIFICARE IN FASE DI PREVENTIVO COLORE E TIPOLOGIA FASCETTE
colori disponibili Blue Red Black Matt Black , Green Yellow Purple Orange
Variante disponibili No Stainless Steel W4 Worm-Drive Stainless Steel W4 T-Bolt
Note: Some types of coolant are not compatible with silicone hoses. Please click here to download our Important Fitting Notes before buying and fitting silicone hoses.

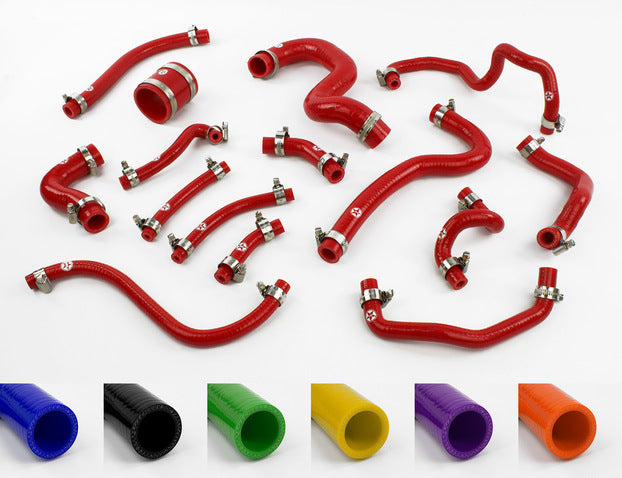

This high quality reinforced silicone hose kit replaces 15 breather and vacuum hoses in the engine bay listed below. The hoses fit all non-WRC right hand drive ST205 (6th Gen) Celica GT4 models.
Turbo To Charge Cooler Inlet Hose
Cam Cover to Oil Catch Can Breather Hose
Oil Catch Can to Intake Breather Hose
Airbox Breather Hose
Lower Oil Catch Can Hose
Inlet Manifold Breather Hose
Inlet Manifold to AC Idle-Up Valve Hose
Breather Hose connecting two Metal Pipes
Throttle Body Breather Hose
Cam Cover to Inlet Manifold Breather
Brake Servo to Inlet Manifold Vacuum Hose
Actuator Vacuum Hose
Actuator Vacuum Hose
AC Idle-Up Valve to Charge Cooler Hose
Dump Valve Hose

Hose Clamps:
The kit is available with a full set of hose clamps using the options above. The three types of clamp we offer are shown below, but not all options will appear for some kits due to size limitations:

Spring clamps are the most commonly used type by vehicle manufacturers. They provide excellent evenly distributed clamping force and are generally the best option for clamping coolant hoses, but they can be fiddly to fit/remove, and being mild steel they are prone to minor surface rust if their coating is chipped/scratched. Whilst this won't affect the performance or lifespan of the clamp some customers prefer our stainless steel options below which tend to look better and still perform as they should.

Worm-Drive clamps have slightly less evenly distributed clamping force as the Spring type clamps, but they are still a good quality clamp and usually easier to fit/remove in the tight confines of an engine bay. Being 100% stainless steel they do not rust, so we recommend this type of clamp if you are concerned about the appearance of your engine bay.

T-Bolt clamps are the most heavy duty clamps we supply, and are also 100% stainless steel to prevent rust. However they are much more expensive and, like the Worm-Drive clamps provide a slightly less evenly distributed clamping force than the Spring clamps. For this reason we recommend using them for Turbo applications (intercooler/intake hoses) where high boost can cause hose blow-off's and the additional clamping force is useful. Some customers like to use T-Bolt clamps for all hoses on their vehicle however so we offer them as an option for most of our kits.

For some vehicles the original clamps can be reused so we also offer our kits without clamps, but please be aware our silicone hoses are slightly thicker than the standard hoses so in some cases the original clamps may be too small.

Specification:Application: Toyota Celica ST205 Chassis (Non-WRC models only) '94-'99 | Turbo 3SGTE Engines | Manual Transmissions | RHD Models
Construction: ~4.5mm 4-ply silicone with 3-ply polyester reinforcing
Max Operating Pressure: >7bar
Burst Pressure: >10bar
Operating Temperature range: -50°c to 240°c
Certification: Manufactured to ISO9001:2000 & ISO TS16949 standards
Warranty: 3 Years (UK based)
