SKUNK2 ALPHA VALVE SPRING AND TITANIUM RETAINER KIT HONDA K-SERIES
Em-Power rivenditore SKUNK2 per l'Italia.
Marchio specializzato Honda e non solo, produzione propria di diverse componenti racing e di complemento, perchè anche l'occhio vuole la sua parte. Altissimi standard qualitativi di costruzione.
Per conoscere la disponibilità di questo prodotto e sapere costi e tempi di spedizione clicca su " aggiungi alla lista " ,se hai bisogno di altri prodotti completa la tua lista e richiedi il preventivo cliccando su " invia ".
Lo staff di Em-Power ti comunicherà il prima possibile, il totale inclusa spedizione ed i tempi di consegna.
Richiedendo il preventivo non sei obbligato ad acquistare nulla, potrai scegliere di accettare o cancellare il tuo preventivo.
Em-Power official SKUNK2 seller for Italy.
All Skunk2 products are carefully planned and designed in-house using the latest computer simulation and modeling techniques, followed by careful testing in controlled laboratory environments using state-of-the-art equipment. Each product is then subjected to rigorous dyno, street, and race track testing to ensure proper performance in the most extreme conditions. For these reasons, top street cars and race cars worldwide rely on Skunk2 products.
For availability of this product and to know costs and delivery times click on " aggiungi alla lista " , if you need other products complete your list and ask for a quote by clicking on " invia ".
The Em -Power staff will inform you as soon as possible about the total including shipping and delivery times.
Requiring the quote you are not obliged to buy anything, you can choose to accept or delete your quote.

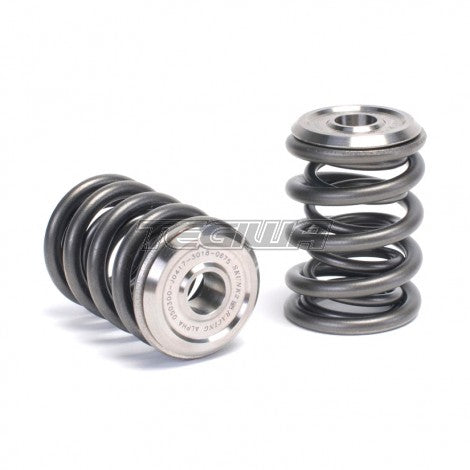

Skunk2 is proud to introduce its Alpha Valve Spring and Titanium Retainer Kit for Honda's K-series engines. Each kit includes Skunk2's high-quality dual valve springs and race-proven titanium retainers that are the result of nearly two decades of racing and engine building experience.
Each Alpha Valve Spring is manufactured exclusively from super-clean, chrome-silicone wire milled in Japan. By using inner and outer springs mated together through a slight interference fit and with differing frequencies, Alpha Valve Springs are able to prevent valve float and maintain valvetrain stability at engine speeds in excess of 10,000 rpm.
Skunk2's industry-leading Alpha Titanium Retainers are designed to significantly reduce valvetrain mass, resulting in morehorsepower and improved valvetrain stability. Similar to Skunk2's already popular Pro Series Titanium Retainers, Alpha Titanium Retainers feature radius-cut edges for additional rocker arm clearance and reduced weight, strategically positioned lightening grooves, and reduced overall heights for better valve seal clearance and even further weight reduction.
Alpha Titanium Retainers are manufactured using the latest 3D CAD (Computer Aided Design) and FEA (Finite Element Analysis) to ensure that each is optimized for strength as well as for reduced weight. Skunk2 engineers then test and prove their designs on the engine dyno as well as the race track. Once approved for manufacturing, only medical-grade titanium that's been ultrasonically inspected and certified is used. Following CNC machining, each retainer is then individually inspected to ensure proper hole diameter, taper, and that each are free from machining defects to ensure proper installed valve spring heights and pressures. Finally, each retainer is serialized for your protection, including valuable information, like material batch specifics as well as production and inspection dates.
Skunk2 designs, develops, and tests its entire valvetrain lineup in-house to ensure superior quality and maximum performance gains. During development, each valvetrain component is tested both on the dyno and the road, including 11,000 rpm drag racing engines and 17,000 rpm superbikes. Manufactured from the best materials available, Skunk2 valvetrain components provide exceptional performance, reliability, and quality and remain standard-issue on each Skunk2 vehicle that we build and support.
Note:Engines originally equipped with single valve springs must use K-Series Spring Base Kit, available separately.
Seat Pressure: 60 lbs at 1.600
Open Pressure: 220 lbs at 1.100
Coil Bind: 1.000
Please When using Skunk2 Titanium Retainers on 2004 and newer engines, pre-2004 keepers (cotters) must be used (Honda P/N 14781-PR7-A01). Pre-2004 keepers can be identified by the absence of marks along the top edge (2004 and newer keepers feature laser-etched marks along the top edge). For applications where 2004 and newer keepers are used, Skunk2 Titanium Retainers must be used. Proper retainer/keeper selection is important due to varying angle ratios between earlier and later keeper designs. Use of improper retainers and/or keepers may result in potential engine damage.
