Mazda Mx5 MK1 NA 1.6 Kit tubi silicone Coolant & Breather

SPECIFICARE IN FASE DI PREVENTIVO COLORE E TIPOLOGIA FASCETTE
colori disponibili Blue Red , Black , Matt Black , White , Green , Yellow , Purple , Orange
Variante disponibili No Stainless Steel W4 Worm-Drive Spring Clips Stainless Steel W4 T-Bolt
Note: Some types of coolant are not compatible with silicone hoses. Please click here to download our Important Fitting Notes before buying and fitting silicone hoses.

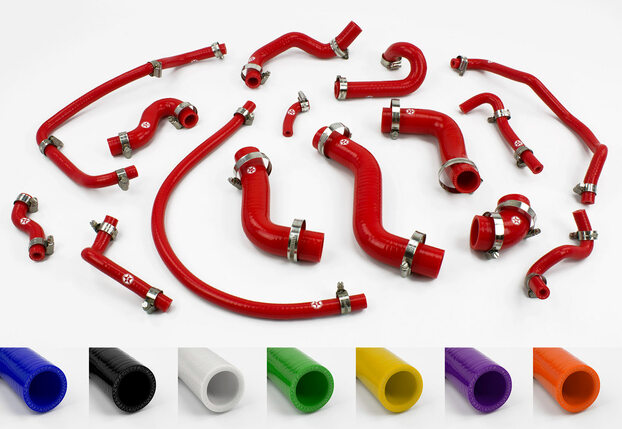

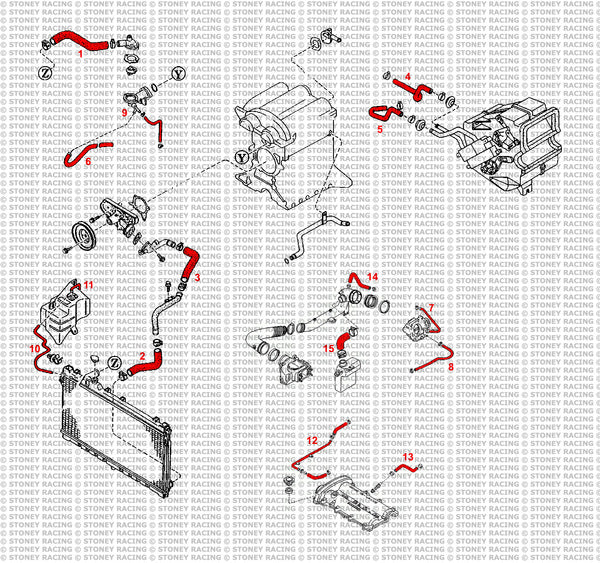

This high quality reinforced silicone hose kit replaces 15 coolant and breather hoses in the engine bay listed below. The hoses fit all manual Mx5 MK1 1.6 models.
Upper Radiator Inlet Hose
Lower Radiator Outlet to Hard Pipe Hose
Lower Radiator Hard Pipe to Block Hose
Heater Matrix Inlet Hose
Heater Matrix Outlet Hose
Inlet Manifold to Thermostat Housing Coolant Hose
ISC to Throttle Body Coolant Hose
Throttle Body Coolant Hose
Thermostat Housing Bypass Hose
Radiator to Expansion Tank Hose
Expansion Tank Overflow Hose
Cam Cover to Intake Pipe Breather Hose *
PCV to Inlet Manifold Hose
IACV Breather Hose
Intake Pipe Resonator Hose

* The kit includes the one piece cam cover to intake breather hose found on later models. If you have the earlier model with two hoses and a metal breather pipe running across the front of the engine you can either unbolt the metal pipe and use the longer hose, or cut a section out of the middle of the hose to give you the two shorter hoses and keep the metal pipe. The hose can be cut easily with a stanley knife using a new blade, ensuring you leave enough overlap to clamp the hoses to the metal breather pipe. The optional clamp kit includes two additional clamps for this purpose.

Hose Clamps:
The kit is available with a full set of hose clamps using the options above. The three types of clamp we offer are shown below, but not all options will appear for some kits due to size limitations:

Spring clamps are the most commonly used type by vehicle manufacturers. They provide excellent evenly distributed clamping force and are generally the best option for clamping coolant hoses, but they can be fiddly to fit/remove, and being mild steel they are prone to minor surface rust if their coating is chipped/scratched. Whilst this won't affect the performance or lifespan of the clamp some customers prefer our stainless steel options below which tend to look better and still perform as they should.

Worm-Drive clamps have slightly less evenly distributed clamping force as the Spring type clamps, but they are still a good quality clamp and usually easier to fit/remove in the tight confines of an engine bay. Being 100% stainless steel they do not rust, so we recommend this type of clamp if you are concerned about the appearance of your engine bay.

T-Bolt clamps are the most heavy duty clamps we supply, and are also 100% stainless steel to prevent rust. However they are much more expensive and, like the Worm-Drive clamps provide a slightly less evenly distributed clamping force than the Spring clamps. For this reason we recommend using them for Turbo applications (intercooler/intake hoses) where high boost can cause hose blow-off's and the additional clamping force is useful. Some customers like to use T-Bolt clamps for all hoses on their vehicle however so we offer them as an option for most of our kits.

For some vehicles the original clamps can be reused so we also offer our kits without clamps, but please be aware our silicone hoses are slightly thicker than the standard hoses so in some cases the original clamps may be too small.

Specification:Application: Mazda Mx5/Miata/Eunos NA (MK1) Chassis '89-'98 | 1.6 B6-ZE Engine | Manual Transmissions | RHD & LHD Models
Construction: ~4.5mm 4-ply silicone with 3-ply polyester reinforcing
Max Operating Pressure: >7bar
Burst Pressure: >10bar
Operating Temperature range: -50°c to 240°c
Certification: Manufactured to ISO9001:2000 & ISO TS16949 standards
Warranty: 3 Years (UK based)
