Intercooler universale in lega Serie 100

Product Description

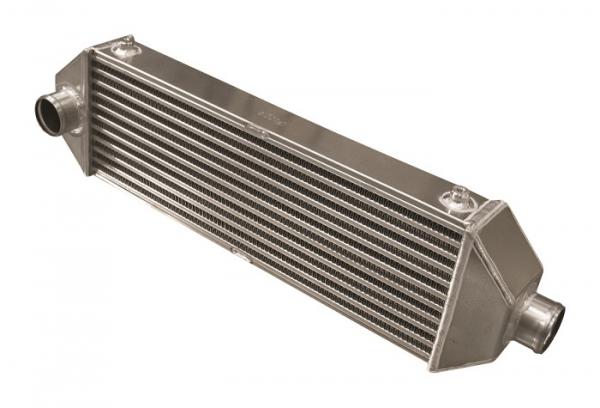

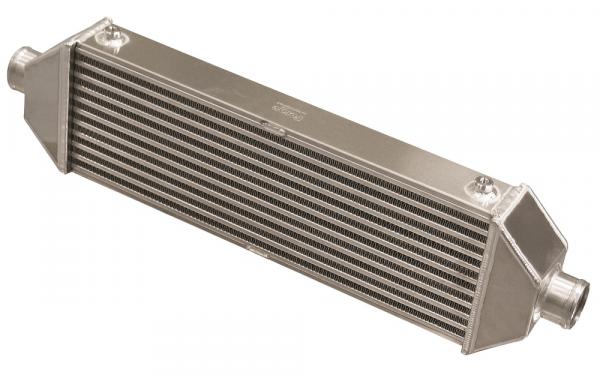

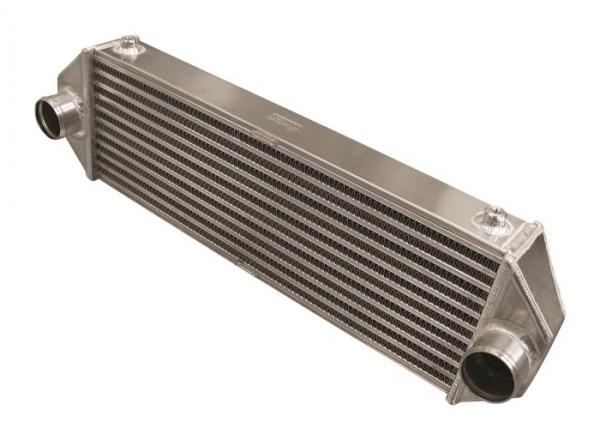

Universal 100 Series Alloy Intercoolers - 60mm Core

Forced induction (compression of inlet air) produces heat. Heat can reduce power thus negating some of the benefits of forced induction in the first place. Incorporating an intercooler between the compressor and the plenum chamber greatly reduces the adverse effects of elevated air inlet temperatures. Forge Motorsport’s range of universal intercoolers begin with efficient cores sized to fit many forced induction applications. From there, a wide selection of end tank configurations offer numerous installation solutions. Using the highest quality cores, hand fabricated and welded by highly skilled craftsmen, our intercoolers offer excellent thermal properties, flow characteristics, minimal pressure drop and high volumetric efficiency.

We cannot advise if these intercoolers will fit your vehicle. For most applications we need to produce vehicle specific kits, rather than using “Universal” products. However for vehicles that are not covered in our range or where the vehicle is “non-standard” our Universal range can provide the perfect solution. A good starting point is to determine the physical space available to mount an intercooler and use the dimension tables to ascertain what will fit. Then looking at the type variants (position of the connecting tubes, and diameter, on the intercooler) decide how the hoses need to be routed and connect. Also consider how the intercooler will be secured or mounted. In nearly all cases, when utilising a Universal intercooler, the installer will require a suitable level of technical ability. Finally, if you think that the only answer would be a custom made intercooler, we will be happy to quote you for this, however we will require a dimensional drawing of what you require before we can do so.

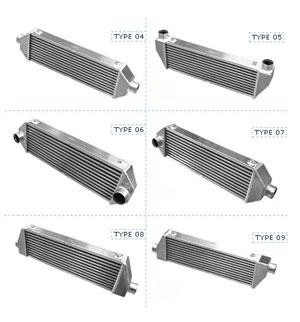

100 Series

Core Dimensions - L x W x H mm (in)

Overall Dimensions - L x W x H mm (in)

Type 04 500 x 60 x 175 (19.69 x 2.37 x 6.89) 680 x 80 x 200
Type 05 500 x 60 x 175 (19.69 x 2.37 x 6.89) 650 x 80 x 223
Type 06 500 x 60 x 175 (19.69 x 2.37 x 6.89) 650 x 115 x 200
Type 07 500 x 60 x 175 (19.69 x 2.37 x 6.89) 665 x 115 x 200
Type 08 500 x 60 x 175 (19.69 x 2.37 x 6.89) 680 x 80 x 200
Type 09 500 x 60 x 175 (19.69 x 2.37 x 6.89) 680 x 80 x 200

Please select the intercooler type and the tube sizes in the option menus .

We can also supply M8 threaded boss mountings or angular brackets as mounting points. Please contact us with your requirements.

PLEASE NOTE: PIPE DIAMETER IS THE OUTSIDE DIAMETER OF THE PIPE

Check your vehicle compatibility: Click here

Please Note: In line with our policy to constantly review, revise, and improve our product range, the appearance of the product you receive may differ from the one advertised.
Click the triangles to find your car make and model. Note that the models listed here have either had the part fitted by us or a customer or they are listed as being compatible on industry parts databases. Where it has not been directly fitted by Forge there will then be a separate May Also Fit tab where the make and model will also appear and which details our no-risk approach to purchasing this product, so it is worth checking there as well.

Universal
Universal Application - Please Contact Us If You Are Unsure Whether This Product Is Suitable
Size:Indicare il colore nelle note Tube Diameter 51mm Tube Diameter 57mm Tube Diameter 63.5mm
